DE-5000 LCR Meter

Electronics
#1

Continuing the discussion from Building a 2m LNA:

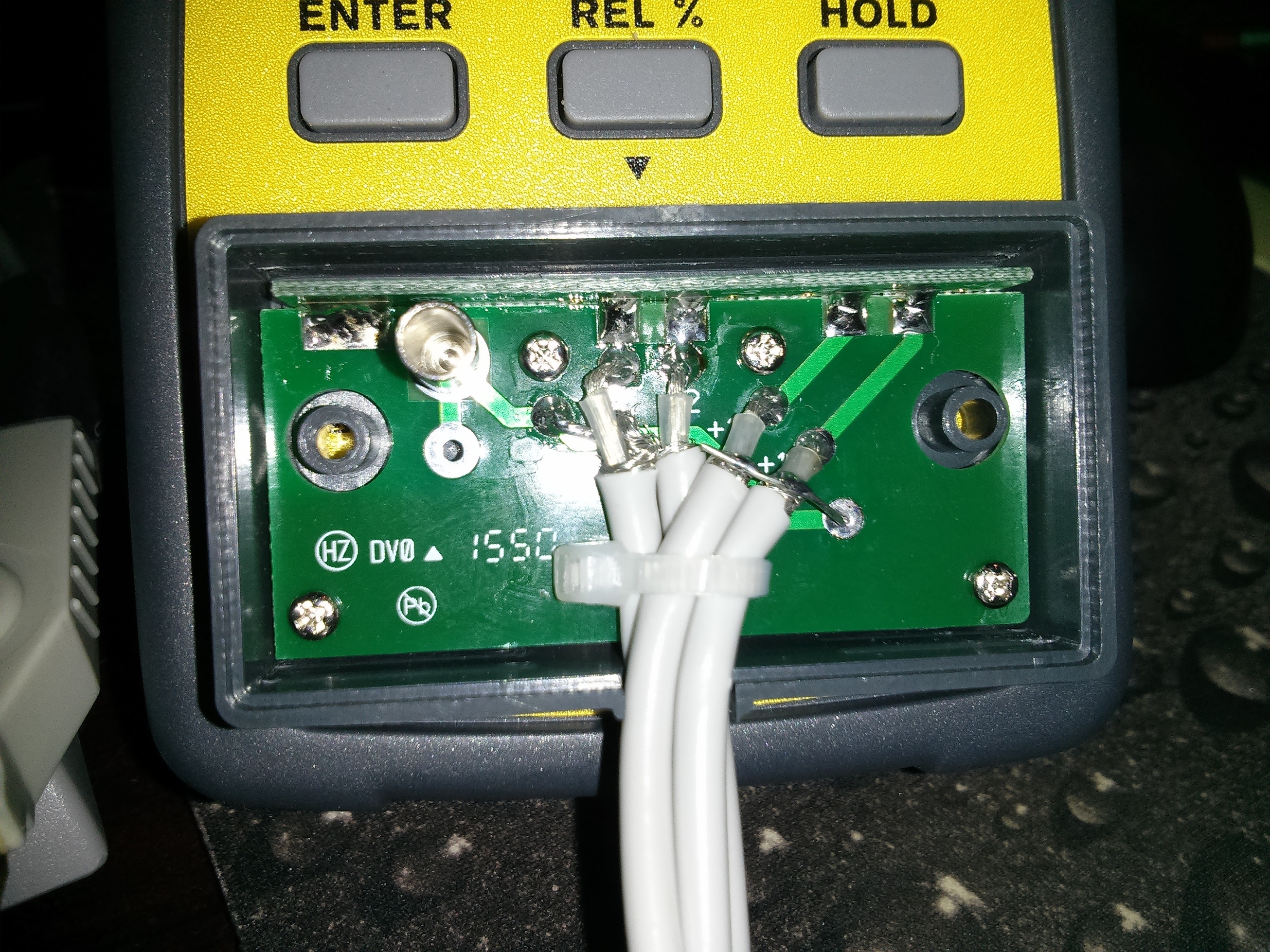

I’ve also purchased Kelvin clips for the meter, and have successfully grafted them on to one of the accessories. However, I didn’t pay close enough attention and got the red clip on the (-) terminal and the black clip on the (+) terminal. Oh well! :slight_smile:

IMG_20160907_215226.jpg2448×3264 2.64 MB

IMG_20160907_215240.jpg2611×1958 1.84 MB

3 Likes
Dallas HVAC Parts
#2

Thought that was Walter’s setup at first glance. May have to get a couple of those and modify for the E Lab!

#3

Just picked one up to do some motor test. Will do this mod!
