Bosch diesel injector replacement

Automotive
#1

It’s been a fun day working on my truck, and I thought I’d share a few pictures.

Some background: I’ve noticed an occasional knocking at idle and under heavy acceleration, which can be caused in a diesel by a leaking injector. A fellow DMS member was kind enough to lend me a scan tool which confirmed a negative fuel balance rate for one injector, and allowed confirmation of the diagnosis by shutting that one off and observing that the knock stopped.

I ordered a new one from Injectors Direct and installed it today. The truck is purring like a kitten again!

The old one, buried back behind the fuel hoses and glow plug controller.

IMG_20170310_115121.jpg2611×1958 1.8 MB

Several extensions and a crowfoot flare wrench were required.

IMG_20170310_123439.jpg3264×2448 2.16 MB

Old injector, new injector, the hold down bracket, and the old fuel line.

IMG_20170310_141533.jpg3264×2448 2.71 MB

Grimy injector bore before cleanup.

IMG_20170310_141632.jpg3264×2448 2.16 MB

New injector, installed and ready to test!

IMG_20170310_162001.jpg2448×3264 1.74 MB

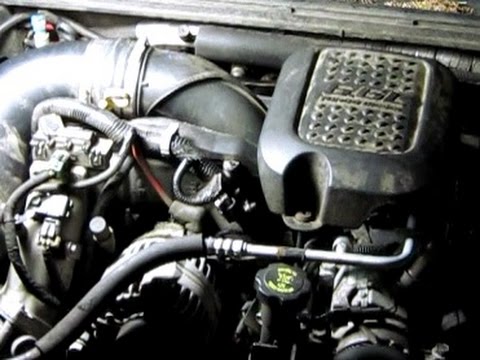

Video, or it didn’t happen.

7 Likes
#2

Thanks for sharing that repair!

1 Like
#3

For my next trick: re-routing the PCV line so as not to dribble condensed oil mist down the back of the engine.

(edit: also prevents the intercooler from becoming a coke-plugged mess.)

S&B Intake Upgrade
#4

I’d forgotten to post these. I used a USB camera to help me clean out the injector bore. Enjoy!

Duct tape and a series of hoses were used to make a custom mini-vac with variable suction.

IMG_20170310_144442.jpg3264×2448 2.62 MB

Almost clean.

4 Likes
'95 F150 5.0 oil issue
#5

A few options :
1- reroute the PCV to the ground like in the old days (might stain the driveway tho)

2-install a Mann Hummel Pro Vent

and there are others…

#6

Neat! I didn’t know #2 existed. I like that option.

1 Like
#7

Mann Hummel is the real world’s filter company - the Pro Vent is well made, readily available.

Just trying to help…

2 Likes
#8

Thanks for the tip. Every little bit helps: injector failure on these trucks is blamed on either the 7-micron fuel filter (too wide) or the ultra-low-sulfur diesel fuel. I’ve solved the latter with an additive (Optilub XPD, chosen because of an independent test) and plan to solve the former with a lift pump -> water separator -> CAT 2 micron filter adapter. The stock high-pressure injection pump has a gear lift pump to suck the fuel from the tank, which does not have enough cowbell to use the 2 micron filter w/o some help.

1 Like
#9

Then there is the option of a tin can option as well. CCV mod on the 7.3 many have done that.

1 Like
