Soldering class and project advice

Electronics
#1

I’ve got an audio DAC that I need to replace an IC in. Others have reported that the static/crackling/no playback issue we have with the model(s) is fixed by doing so. I believe this is an “SMD” chip.

Info:

Results:

Part:
https://www.mouser.com/ProductDetail/Skyworks-Solutions-Inc/SI5351A-B-GT?qs=p9T7GgSe1IEO%2BMfC%2FKPFfA%3D%3D

I’d like to take the opportunity to both learn, as I’ve wanted to learn soldering for a long time, and fix my device.

I’ve already ordered a few of the 2$ ICs in case I screw it up. And already purchased another DAC so I’m not in a rush on this.

Are there classes for soldering, regular office hours, or anyone willing to take some time to look over the project with me and give advice and feedback?

I’m a complete newbie so even just throwing some learning materials at me would be helpful.

#2

The next office hours I have will be the 27th from 6-8 PM. We should be able to knock this out.

#3

Awesome, I’ll be there!

#4

20240217_200954
20240217_2009541920×3413 532 KB

Oh wow… I didn’t realize how small the ICs would be.

Do I need to bring anything other than the gear? Happy to pick up anything I need to beforehand. I do have a soldering iron but I’ve never used it. No idea if it’s any good. https://www.amazon.com/dp/B082HP4513?ref=ppx_pop_mob_ap_share

#5

Bring yours and we’ll find out. I should point out this is not a starter project

#6

Yeah, I’m realizing that now that I see it. Lol.

I’ll bring what I’ve got then. Maybe some old stuff to practice de/resoldering as well?

#7

Just an FYI, the slab Flattening Mill Class got scheduled for this same day at 6:30. I’ll still try to make it before and/or after but I don’t know how long that will take. And I really need to be there for that class as it’s my “primary” project at the moment.

#8

Could i help?

IMG_20240218_172055304
IMG_20240218_1720553041200×1600 311 KB

IMG_20240218_172151329_HDR
IMG_20240218_172151329_HDR1920×2560 188 KB

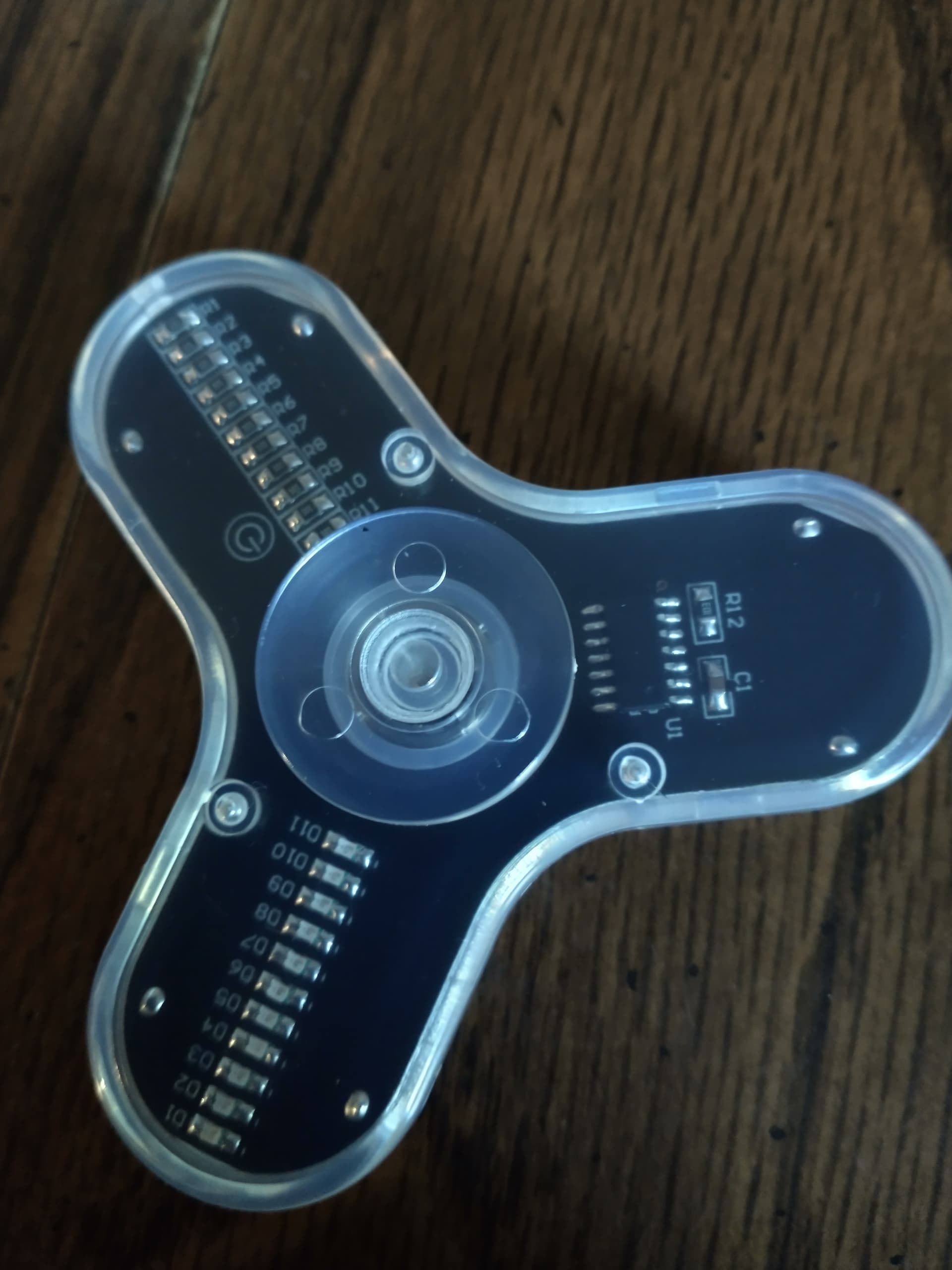

I have smt projects. I am just suggesting this as a secondary help.

#9

I’ll be in Wednesday evening of you want to try then

#10

Sorry, not sure I follow. What kind of help are you offering?

#11

Same I offer at electronics office hours

#12

IMG_20230730_210631370
IMG_20230730_2106313701600×1200 216 KB

I offer my tools, I have the IPC jstf001 cert. We both want you to succeed. As long it is with in reason and good design principles, then you should succeed. We both understand failure is the natural process leading towards success. We both understand that encouragement and advising, will hance you towards your end goals of success. If on teacher does not help you then another teacher will help you.

#13

Oh, I see. Honestly, I’d be grateful for advice and help from anyone.

Hopefully I’ll know in the next day or so if I’ll have that conflict on the 27th or not and then make decisions on when’s best to seek help.

Are you generally at the office hours or another time?

#14

I am between jobs. I try to show up at others convenance and when i dont have a job interview. I try to make a day of makerspace and have a few projects. In case one project is stalled or i am not sure how to complete the project that i am learning on.

#15

I’ll be in office hours tomorrow! Looking forward to seeing anyone there.

1 Like
