Revised HAAS Training Class progress. As some of you may know, I have been working on preparing a revised class curriculum for HAAS training (DMS members ONLY). The training is going to consist of two parts. Part 1, using Fusion 360 to CAM a domino 3D cad model for machining. Part 2 will cover the process and controls of using the HAAS to machine the part. This portion will emphasize the use of the training simulator to not only learn the controls but to be able to practice using them without requiring an authorized HAAS user to supervise.

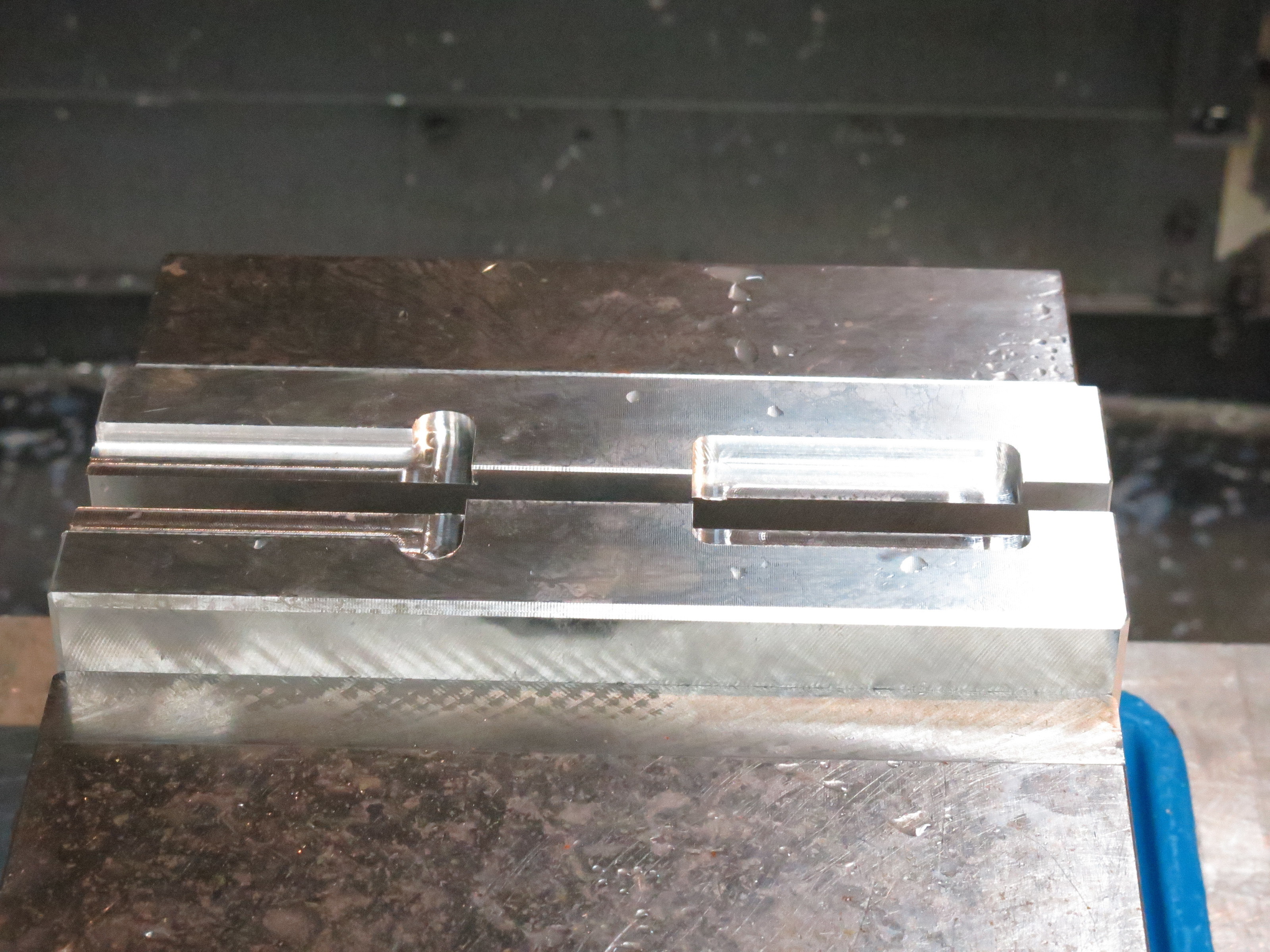

As part of this process, I am changing the fixturing we will be using for machining the Domino. Below is a photo of the fixture I machined yesterday for this process. With the proposed process you will locate (G54) the rear left corner of the vice jaw and perform two setups.
First setup, will have the basic 2.5" x 1" x 0.5" block held in the left part of the fixture. In this set-up you will surface, contour, drill, pocket mill, then chamfer the top and sides of the domino.
Second setup, will occur with the machined domino portion being held in the right part of the fixture. You will surface the remaining raw material off, then chamfer.
Both setups will use the same G54 coordinates.
I will be hosting a teach the teachers session in a few weeks, where we will go over the material I have prepared, make any improvements we come up with. At that point anyone who is already certified on the HAAS will be able to teach the classes for certification.
