The last piece of gear for this year’s Mouser donation came in.

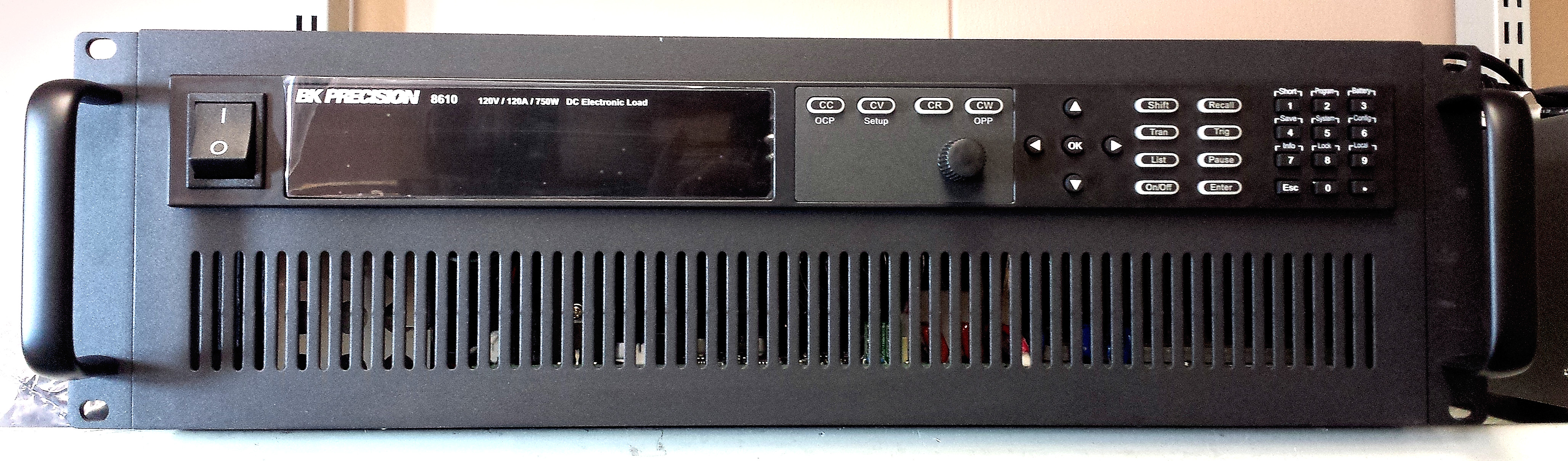

BK 8610 dc load ed
BK 8610 dc load ed.jpg4112×1208 1.67 MB

BK programmable dc load. 0-120V, 0-120A, 750W
There are busbar connections in the back of the unit.

We also got an accessory for the Keithley pwr sply to bring the pwr out to the front.

Keithley 2260B pwr sply ed
Keithley 2260B pwr sply ed.jpg3609×2320 1.86 MB

Both units are on the shelf above the lab pc.
I am in the process of making hardcopy versions of the manuals for some of our new gear.
We are getting some very nice equipment in the ELab and need to keep accessories, manuals, etc. together w/ the equipment. Remind people to do so.

The Electronics tool wiki has been updated w/ new picts and links to user/programming manuals.

10 Likes
#2

If you want to keep manuals with equipment, I would suggest getting some of these.

They are adhesive backed zip-lock bags. That way you can adhere them to the item. These are large enough for 8.5 x 11 paper, but you can get them in smaller sizes if you are going for a different form factor.

4 Likes
#3

Creative Arts has spiral book bindings if you are printing out manuals.
