Being new to the CNC plasma cutter (PlasmaCAM), I wanted to do a small piece just for practice. I opted to cut this, the Deathly Hallows symbol from Harry Potter. I’m not actually certain what kind of metal it is as I found it in the scrap bin; I assume it is steel or something similar. I drew the design in AutoCAD, then scaled it in the PlasmaCAM software to fit the piece of scrap metal I found.

17 Likes

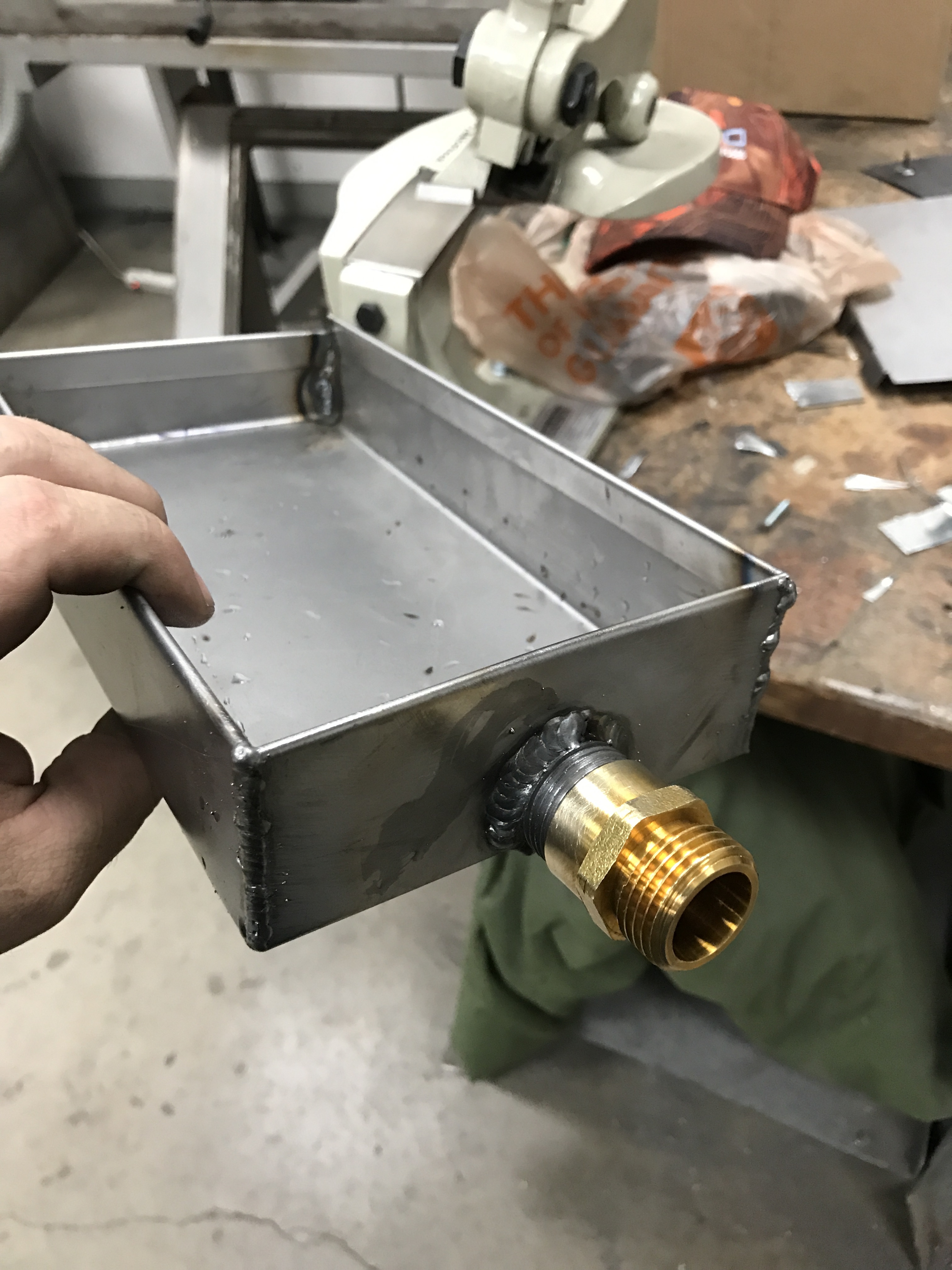

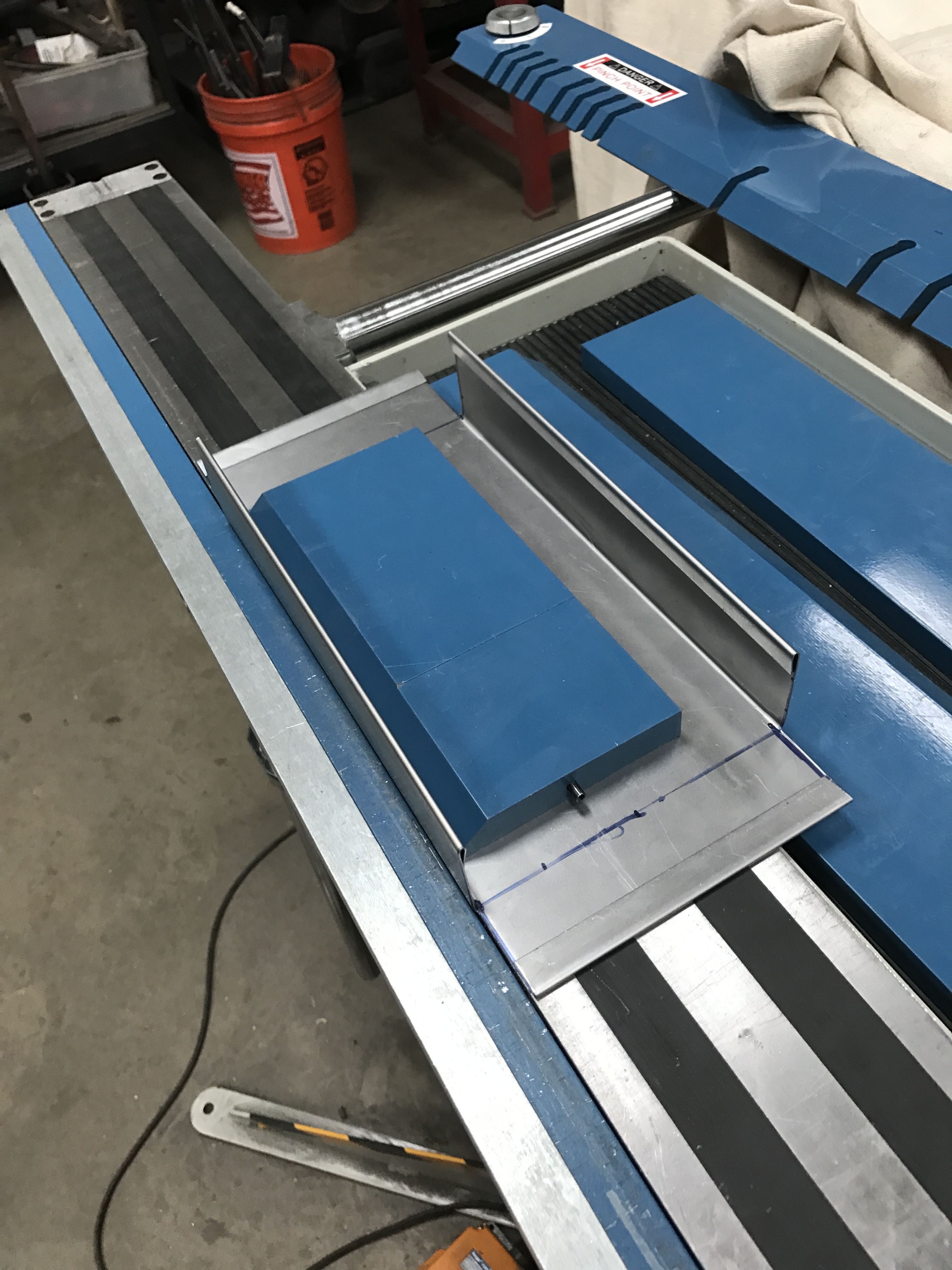

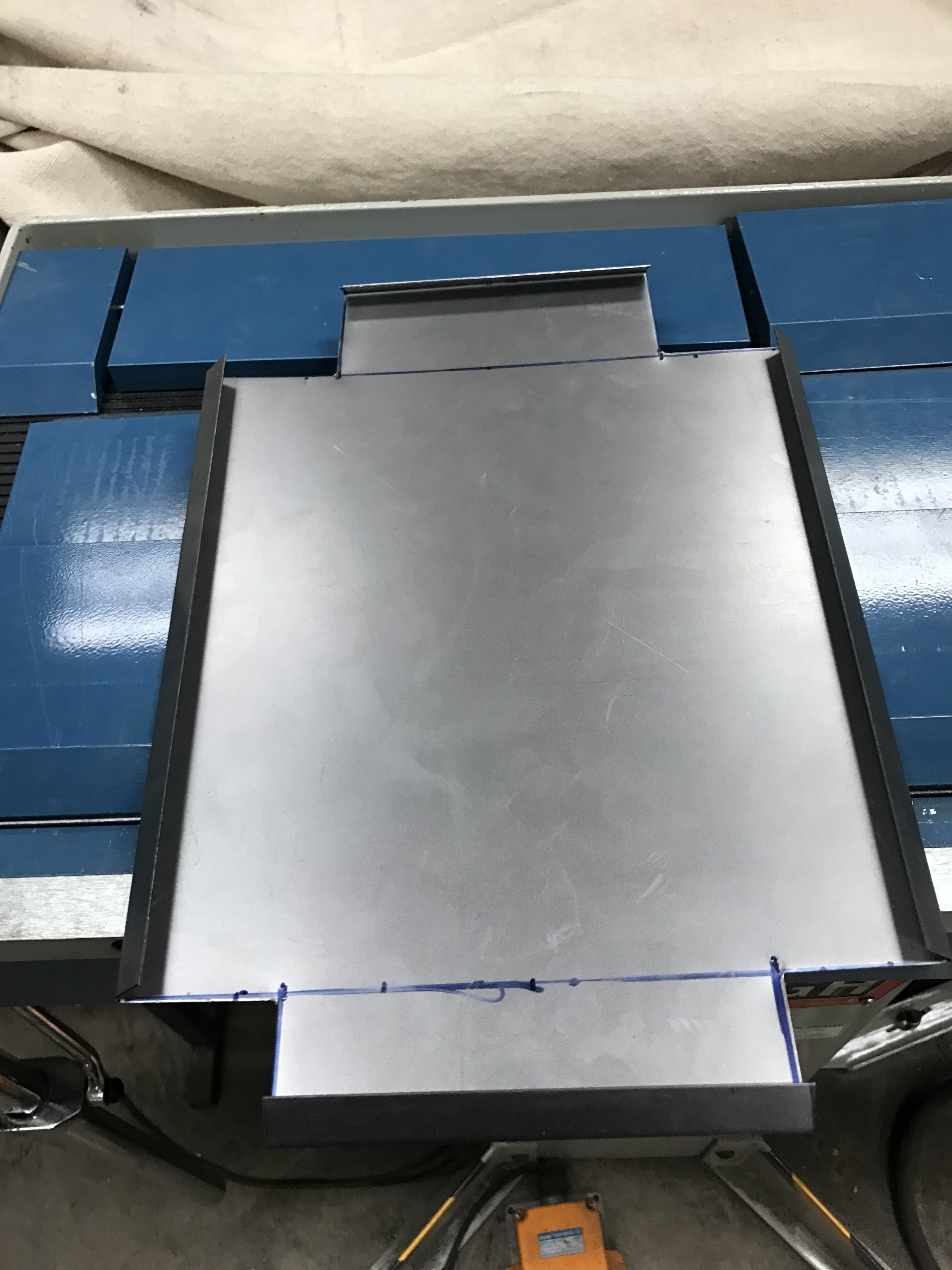

So I made a small box pan for some stuff at work. I mig welded the corners & a drain hose connection. This was done with the .035 wire as well on 22 gauge mild steel.

I have to drain some glycol to keep it from going on my electronics in my VFD. They made a low point a hose so it wont easily drain.



9 Likes

Kewl you were able to put together something that will be very helpful at work!

For the sake of the Show and Tell blog, other than the MIG Welder and I’m guessing the sheet metal brake, which other tools /processes did you use to make that? Did you use the PlasmaCam to cut the hole or something else?

At any rate, kewl stuff! :slight_smile:


Edit to ask... Do people use welders to cut holes in metals? As soon as I asked about the PlasmaCam, I realized that technically a welder probably _could_ be used, but I have no idea if it's done in practice or not... :blush:

I used the foot stomp shear, throatless Beverly style shear, brake & the bandsaw in machine shop to cut the (pipe)nipple down. In addition to the mig welder. The hole I used my carbide hole saw on my Milwaukee drill. It could be done easily on PlasmaCam but I didn’t feel like farting with it.

1 Like

Yes.
Oh, you mean INTENTIONALLY…
Still yes, but not by choice, generally. There’s got to be at least 3 better ways to do that job @ DMS than to use a welder to do it, and I’m likely forgetting a few…

Great work for advertising the equipment, Tim!

3 Likes

Kewlness ~Thanks for info!

One of the things that I made in high school shop was a box ~ so this sort of takes me back a bit… :heart_eyes:


[quote="TBJK, post:45, topic:17835"] PlasmaCam but I didn't feel like farting with it. [/quote]

Haha ~ fair 'nuff! :smile:


[quote="jast, post:46, topic:17835"] Yes. Oh, you mean INTENTIONALLY... [/quote]

LOL :joy:


[quote="jast, post:46, topic:17835"] Still yes, but not by choice, generally. There's got to be at least 3 better ways to do that job @ DMS than to use a welder to do it, and I'm likely forgetting a few... [/quote]

Gotcha, and totally makes sense! :slight_smile:


[quote="jast, post:46, topic:17835"] Great work for advertising the equipment, Tim! [/quote]

:thumbsup: :thumbsup:

1 Like

An oxy-acetylene torch can be used to cut metal, as well as to braze metal together, but the MIG welder (aka wire welder) can’t be used to cut.

1 Like

Made a little box out of walnut with some amethyst inlay.

18 Likes

That would be wonderful to use for embossing paper. I may ask to borrow it towards Christmas. :slight_smile: (I’ll make you a few cards in exchange if it works out.)

It was a good week. I was brave TWICE at the space. Once when I put into play my Shapeoko 2 training to carve cork and then linoleum. The coaster was a test piece, then a big stamp with my initials (because it was either that or the DMS logo…) and also a tiny stamp for someone else at the space.

Then I was brave when Chris from woodshop held my hand and I made a first cut with the table saw outside of class. (Used the chop saw - I know, we don’t call it that - for the backs of the stamps.) The print is laser toner affixed to a scrap piece of 1/4" birch plywood with a transfer technique. I finished it with wax and then rubbed it in using a sander in woodshop anchoring a piece of freezer paper waxed side down.

I learned a lot going back to this technique. Will definitely do it again just as soon as I remember how I managed to get a color print from the copier.

I love the way the grain of the wood plays with the sky and the tone of it glows through the tall grass.

===

Three more. Still figuring out a best technique. Not as happy with the one on acrylic as I thought I would be.

===

Last one. 5x7

3 Likes

This is the power miter saw, usually called “miter saw”.

Thanks. I’ll try to retrain. At my age, it takes a little longer.

He’s just showing off. :wink: It’s OK to call it a chop saw.

Edit: I stand corrected. @Jast has clarified that chop saws usually don’t have miter gauges (among other differences like abrasive blade).

1 Like

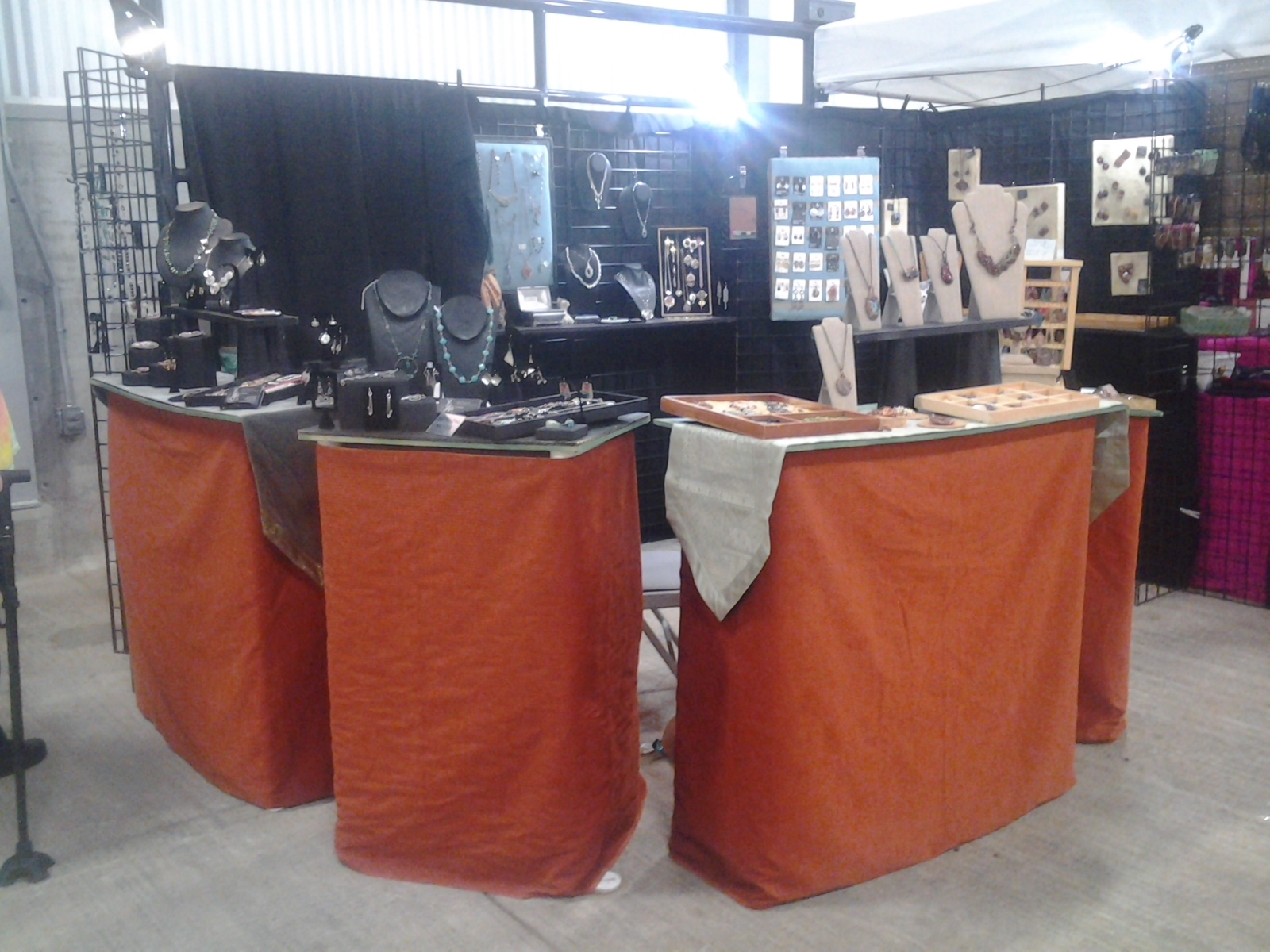

The big thing I dis was my new pedestal for doing shows

I inherited some of the plastic shelving units when a friend passed
I had a large roll of the corduroy I bought years ago for $3

My cost was Velcro, a roll of stitch witchery and some time, most of it
my hubby s He got to do the ironing part

I don t like the tops, They are too thin, I think I will have go with MDF

I also want to add some posters to go under the sleeves on the grids

6 Likes

The first few laser etched bookmarks I’ve been working on are done!

Got the pre-dyed leather at Tandy (half off!), laser etched and cut them, sanded and burnished the edges, sealed with resolene, set the eyelets and tied matching lace through it.


Soon there will be 250 ish of these guys, each with one of four different quotes. My cousin is getting married in a few weeks and these will be wedding favors. She chose quotes that mean a lot to the two of them.

This was my first project on the laser! And it was fun and I’m now hooked. Can’t wait to try another project, and I have a few in mind. Maybe something with less volume involved next time, but if someone orders more of these, I won’t complain. Like I said, really fun!

Edit: added more pictures

26 Likes

Very neat project ~ they turned out great! :smiley:

1 Like

That’s fine with me. I’ll bring it back up there sometime. Just remind me whenever you want it.

1 Like

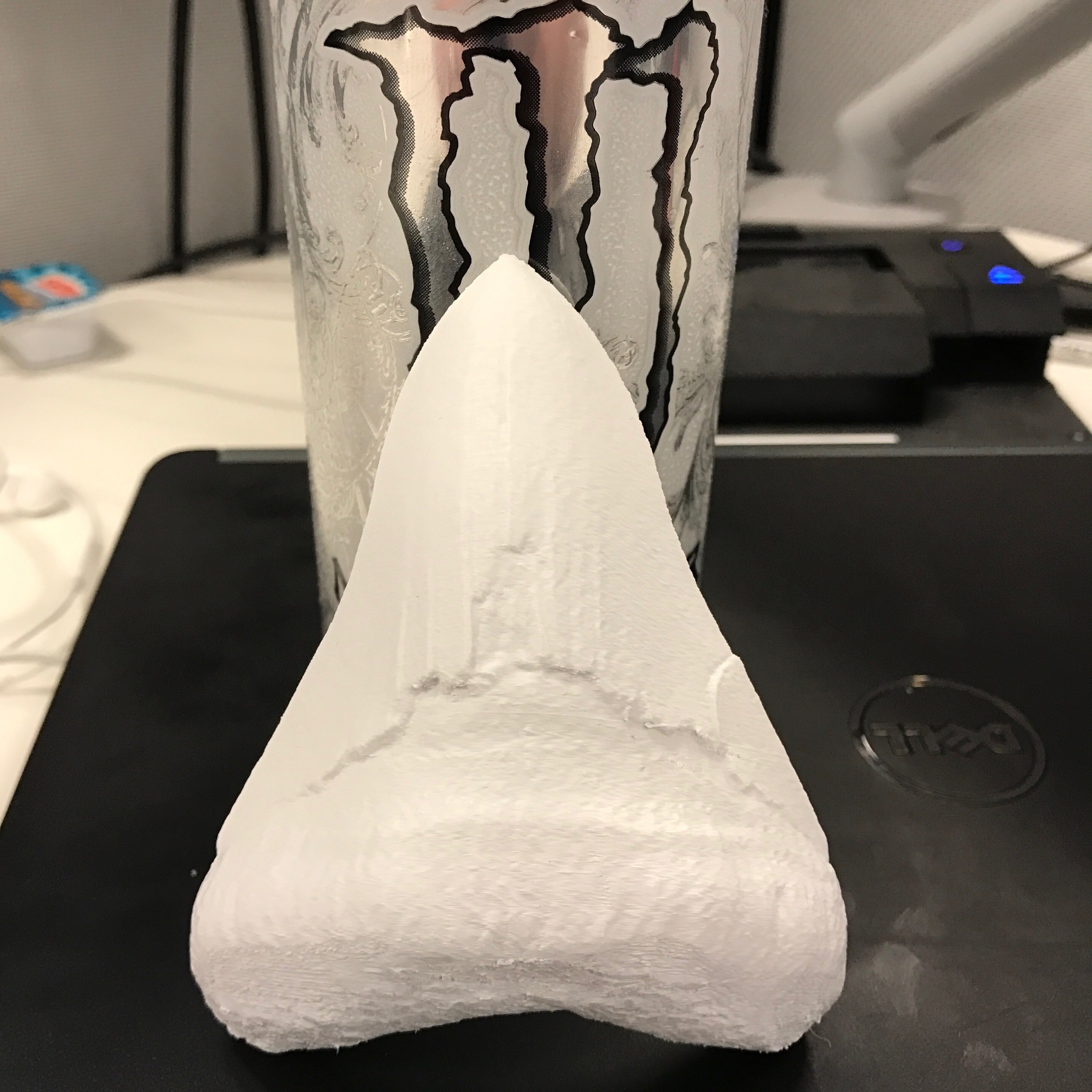

I’ve always wanted to take a trip and dive the Cooper River, in South Carolina. Why would you want to dive in 25-50ft of pitch black water, dealing with currents and entanglement hazards, all while the thoughts of gators and bull sharks keep the pucker factor high? Fossil hunting! The chance to find a large megalodon tooth is what interests me. So, when I found that someone had done a 3D scan of an actual tooth, I had to print it. It still needs some clean up (and I need to get a better handle on Kisslicer settings), but here it is. 5.5 hour print time.

-Kenny

9 Likes

Which laser did you use? Did you cut the edges with it as well or just the engraving?

You work is magical. I’d pay for a class if you ever decide to teach one.

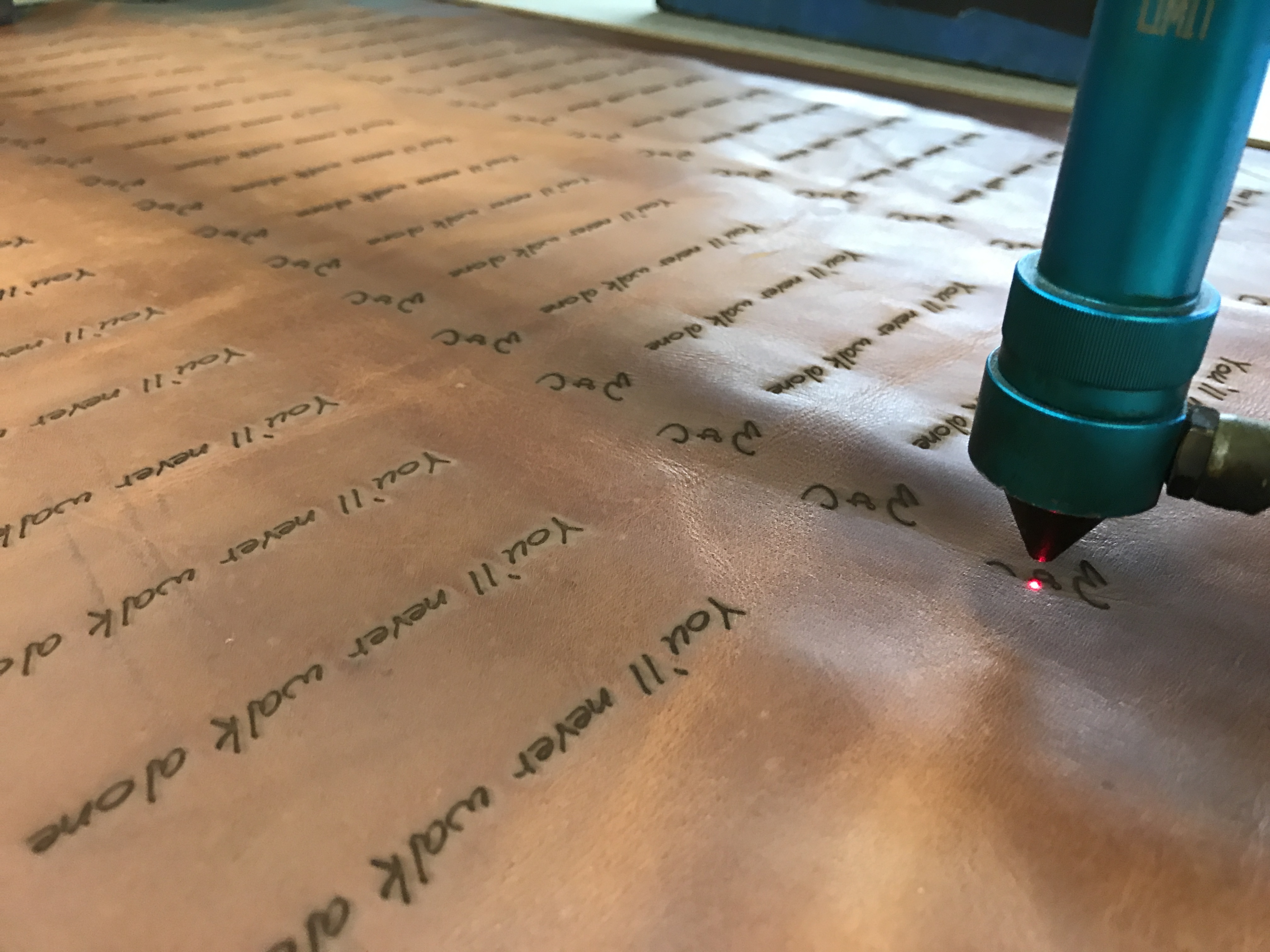

I used the Thunder, since it does raster and was large enough to do four square feet of these things at a time. And I did laser cut the edges as well. It was worth the time spent sanding off the char since I could have easily tripled that time, maybe more, trying to cut them all out by hand.

Thank you very much! I don’t have any plans to teach a laser class at the moment, but I do have an Illustrator class I’m about to submit. The first one is a basics class, but later on there will be a “Designing for Makerspace Tools” class.
