Hi folks, new member here. I’ve been lurking on the forums to try to get my bearings. I did have on question that I couldn’t find a complete answer to. What is the status of the PCB mill? Last I saw it was on the mend thanks to some charitable members. I sure would like to be able to bust out a sample PCB before sending the final to the board house. Hopefully to improve my success rate…which tends to drop the busier I get with my day job.
I’m in the process of splicing in some extensions in the cabling. Have the limit switches left to do. This will allow us to set the miill off the cntrl box and put an enclosure of some kind around it. @JohnK has worked on flags for the limit switches. Once the splicing is done John and I will do some “torture testing” to make sure the extra length of cable has no ill effects.
Some notes:
Users will supply their own tooling - end mills, drills, etc. This may change later.
There will be a class required before using.
Need to build enclosure - similar to Shapeoko?
ChiliPeppr is the current sftwr being used. http://chilipeppr.com/tinyg
Small shop vac similar to that used on Shapeoko?
How to hold pcb while machining.
4 Likes
As per my experience cutting good quality PCBs require good quality CNC machines. There are no short cuts or cheap alternatives available. If you don’t have the finances for a good machine then I would consider using the chemical etching process or a third party manufacturer.
If you do purchase a good machine then you will also be able to make so many other parts. I refer you to my signature. You can see on my photo sites what a good CNC machine will enable you to accomplish.
In Dec give to Machine Shop chair - Nick Silva limit switches plate files that could be mill out. You will need to check with him how it is going & if their some one that could help do it if he is not able to get to it at this time.
PS Andy/aet if you need the stl files talk with me. I
PCB hold down is the major impediment at this point. @AndyFrew if you have experience with hold down options i’d love to get some ideas from you.
I used to work with some LPKF mills quite often, if y’all are looking for other opinions maybe I can offer some.
For our mills, having an enclosure was almost a requirement, to keep the dust out of the surrounding area and to keep the high pitched noises down (for isolation our spindle sat at 40krpm, drilling was 40-80krpm). The machine had some incredible dust collection and surfaces inside the enclosure would still be covered in fine slivers of copper from routing (the dust collection got most of the fine fiberglass dust, luckily).
I’d be concerned about using a small shop vac as dust collection, ours were similar but had HEPA filters as well. I used a canister style home vacuum to clean up once and the whole area started to smell like fiberglass. I assume the smallest dust particles just passed through and were blown into the air by the vacuum.
Our machines used a vacuum hold down system, the same dust collection vacuum would suck the material to the bed, through a fancy air permeable backer board. It was great but got to be pricey.
For yall’s use, I believe a more standard approach is to cut fixed size blanks and drill two holes on opposite edges, the holes can slide into two pins in the milling bed, you can also throw a thin piece of hardboard/mdf behind as a backer for through holes or routing (if you plan to route). The pins also allow you to flip and register the opposite side fairly easily. If you want to go crazy with it you could put multiple locations for pins in the bed, that’d allow someone to pick the blank best suited for their board. For reference, I believe this system was used on older LPKF mills with 9"X11" panels, and two ~3/16" pins (all metric of course…)
4 Likes
What about something like this?
I could redesign it to fit the hold down screws on our bed and to hold down the spoil board at the same time. The idea would be to support 2 or 3 common PCB blank sizes.
2 Likes
Update:
Cable splicing is done.
Stepper motors tested.
@JohnK and I did some testing to check if lengthening the cables had any impact on performance.
ChiliPeppr was used to mill a simple pc brd.
Some notes:
G Code and tooling were not optimized.
Z axis topo mapping was not used - pc brd did not lie flat -obvious in photos.
After 3 - 4 passes. .0625" end mill. Brd slopes downhill from upper left corner to lower right corner.
Spindle is at assigned home point. Repeat-ability appears to be excellent.
Middle and right cuts are done w/ .0250" end mill. 3 - 4 passes each.
Again repeat-ability appears to be excellent.
Flags for limit switches are being made.
Limit switches and Z topo have not been tested.
Need a base and removable enclosure to cntrl noise and dust.
Need a small shop vac w/ HEPA filter. Any recommendations?
5 Likes
I’d recommend getting one that uses bags. Shop vacs with HEPA filters won’t save you from that very nasty fiberglass dust when it’s time to empty the thing.
3 Likes
Hello,
It looks like the pcb mill is coming along pretty well! I have a fair amount of electronics knowledge, and would love to help out! Will anyone be around the space this week sometime mon-wed or sunday evening I could talk to about helping?
Thanks,
Nick
I am working on a hold down scheme that isn’t quite working yet, but I have another prototype ready to 3D print. We still need someone to work out the tool chain, software settings, and write it up for others. The team settled on Chilipeppr as the cam software. If you wanted to do some test runs before I get the next prototype hold down printed, you could unscrew the plastic holder and just tape your pcb to the spoilboard. These are some of the remaining tasks.
- Work holding
- Y-axis stop flag (Needs to wait until workholding is finalized)
- Tool chain and settings documented
- Spec and purchase vacuum with hepa filter and disposable bags
- Help Art spec and purchase/build an enclosure
Also need a hepa rated bag type small shop vac.
Need to have some kind of dust control.
Particulate size??
Open to suggestions!
https://www.amazon.com/Atrix-VACOMEGAU-Omega-Vacuum-Abatement/dp/B00DIBZXZU
https://www.amazon.com/DEWALT-DWV010-Extractor-Automatic-Cleaning/dp/B00OA02TZ0
https://www.amazon.com/NILFISK-GD930-Canister-Gallon-Vacuum/dp/B000E841NU
Ok cool, new prototype sounds promising! Toolchain/software sounds interesting, and I could do a thorough write up. Ok, I’ll read up on chilipepper. I would definitely like to see a test run and the associated gcode if someone has some time to show me.
I was rather unclear, but I may have just missed the proper thread. Anyway, is the current hardware gathered from research, or is this some sort of base kit we started modifying?
Sounds like a fun project! Is there any information on specs of the existing parts, and what specs we hope to accomplish with the final machine?
I know my brother has classmates who have a pcb milling machine on his campus with a shopvac and hepa filter. I’ll ask if he can find out the brand and model.
There is a page on the wiki here where I started documenting the piece parts. It was not a kit; that’s a long, sad tale. There is a to do list but it has not been updated to add the items I listed above. You could add to the to do list and put your name next to any part you want to work on. That will discourage others from duplicating something you are already working to complete.
1 Like
I am nearing completion on the second of the two optical position indicators, the three 3d models of which were given to me by JohnnyK in December. May be done next week; hope it fits well.
Regards,
Bob Karnaugh
1 Like

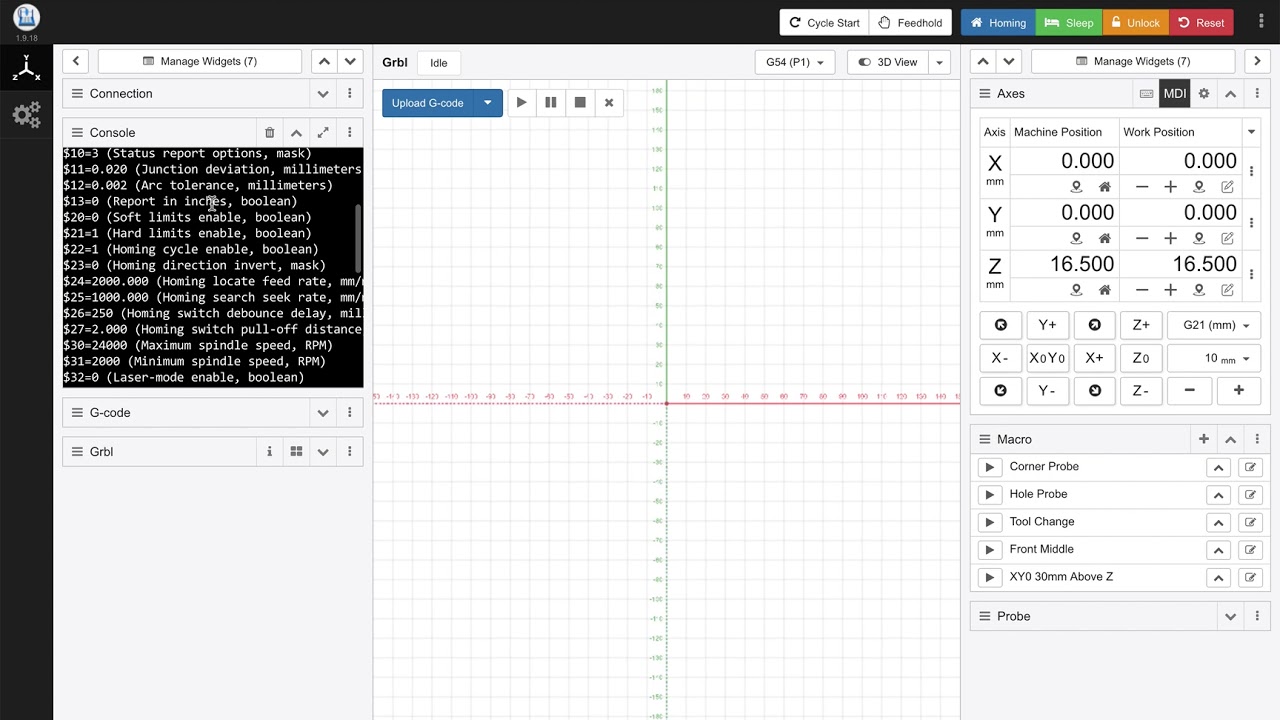

CNCJS
The alternative to octopi… that can run headless? screenless on a pi…
I have a pi server up but i need a proxy server so as to mask my routers ip address, but then i can let people play with the cncjs server without a pcb mill attached. Would this be amenable for a test drive of cncjs? I can then post the temporary link in this thread. Then electronics group can access the server and try to break it or make suggestion of improvement. I will also contact dwit and other hackers here to improve the security before i turn it over to art and the admin. So i do have intentions of making a reasonable system. if this is what the people in electronics want.
